Exploring Britain’s Aviation Heritage A Guide to IWM Duxford’s Top 7 Must-See Exhibits
Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - Spitfire MK 1a N3200 Restoration in AirSpace
The Spitfire MK 1a N3200, a significant piece of British aviation history, tells a compelling story of loss and recovery. After disappearing for almost 50 years, it was eventually rediscovered and acquired in 2000, setting in motion a dedicated restoration project. Led by Historic Flying Limited, experts in revitalizing historic aircraft, the restoration was a meticulous undertaking. Completed in 2014, Spitfire N3200 was returned to its original condition and has since been taking to the skies, painted in its original No. 19 Squadron livery. It now calls the IWM Duxford home, after being formally gifted to the museum in 2015. A rare opportunity for visitors at IWM Duxford is the chance to sit in the cockpit of this historic plane. Its authenticity and link to the Battle of France earned it a spot on the Historic Aircraft Association's Top Ten list of "National Treasures". This remarkable aircraft continues to be a highlight at airshows, a living reminder of its crucial role in pivotal moments like the Battle of France and a testament to the dedication of those involved in its remarkable restoration.
The Spitfire MK 1a N3200, a fascinating piece of aviation history, stands out as an early example of retractable landing gear, a feature that was quite innovative for its time. It improved the overall aerodynamics and flight performance, giving a slight edge in those early days of the Battle of France. The N3200 is one of 20,351 Spitfires built, which speaks volumes about the manufacturing capacity during wartime. Its restoration revealed the airframe's clever design for minimizing drag, giving the Spitfire an advantage in speed and agility compared to other fighters at that time.
The MK 1a variant was powered by the Rolls-Royce Merlin engine, generating around 1,030 horsepower. This gave it a top speed of approximately 362 mph. Its airframe, predominantly made of aluminum with various alloy compositions, is a great example of the material science of that time, highlighting the importance of the optimal strength-to-weight ratio for combat aircraft. The restoration team was painstaking in recreating the original paint schemes, meticulously researched and using correct materials, and techniques to give the Spitfire a historically authentic look.
The Spitfire N3200 had a distinctive bubble canopy, which provided outstanding visibility, a feature later adopted in many fighter designs. During the restoration, specialists used CAD software to examine original blueprints, allowing them to adhere to the aircraft's original specifications while also implementing modern methods to ensure it met modern standards. It's remarkable to see how sophisticated the intricate wiring of the various combat systems was for that era. The N3200, through its restoration, is a fascinating window into the design evolution of aircraft. It highlights how advanced engineering and composite materials impacted future designs, demonstrating the aircraft's significant role in aviation history. The Spitfire served as an inspiration and its design features and engineering innovations paved the way for the next generation of combat aircraft.
What else is in this post?
- Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - Spitfire MK 1a N3200 Restoration in AirSpace
- Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - Harrier Jump Jet in AirSpace
- Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - de Havilland Mosquito in Air and Sea
- Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - de Havilland Mosquito in Air and Sea
- Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - Avro Lancaster in AirSpace
- Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - Messerschmitt Bf 109 in Air and Sea

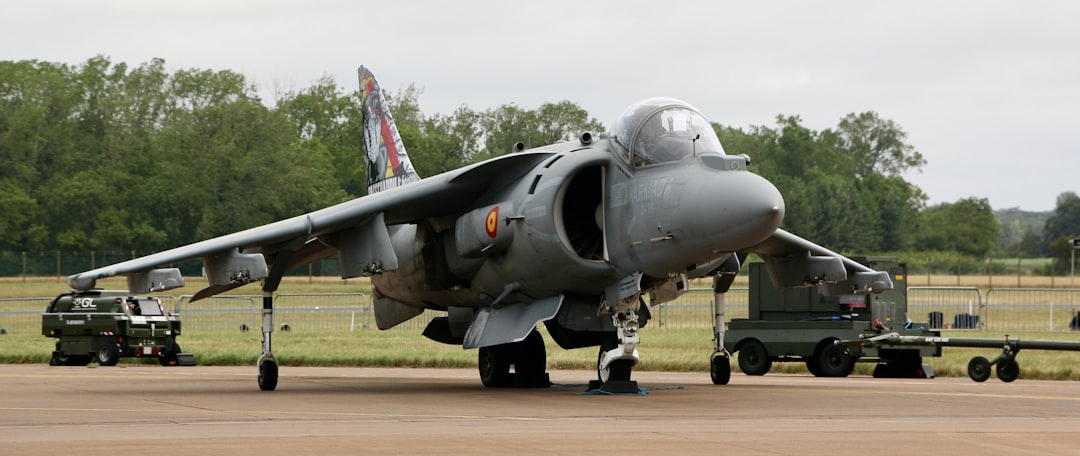

Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - Harrier Jump Jet in AirSpace
The Harrier Jump Jet, a product of Hawker Siddeley in the 1960s, revolutionized aviation with its unique ability to take off and land vertically or with very short runways. This "jump jet" was designed for attack missions, representing a major step forward in military aircraft capability. The Harrier's impact on British aviation is undeniable, with a service history that stretches over decades, including its participation in pivotal events like the Falklands War. It's a prime example of British innovation and problem-solving in engineering, as it overcame numerous challenges throughout its development. The Harrier lineage, with various models including the Sea Harrier FRS1 and the final GR9, showcases how this aircraft evolved to meet the demands of changing combat scenarios. While its role was often tied to political considerations and sometimes resulted in indecisive operational deployments, the Harrier stands as an enduring symbol of British military air power.
At IWM Duxford, within the AirSpace hangar, visitors encounter a tangible representation of this iconic jet. It serves as a powerful reminder of British ingenuity, reflecting not just military might but also the complexities of technological development and its role within a larger strategic context. If you are interested in the development of aviation technology and military aircraft in particular, the Harrier Jump Jet display is a must-see at Duxford. It provides a visual link to the past, demonstrating a clever approach to flight that remains a hallmark of British engineering. It is a fascinating aspect of aviation history and a good example of how the development and operation of aircraft was (and remains) intimately tied to political and military developments.
The Harrier Jump Jet, or more formally the Hawker Siddeley Harrier, stands as a testament to British ingenuity in aviation. It was one of the first fixed-wing aircraft capable of vertical or short take-off and landing (V/STOL), a feat achieved through a system of four rotating thrust nozzles on its Rolls-Royce Pegasus engine. The ability to hover and land vertically was truly revolutionary for its time.
The Harrier's design is a masterclass in variable geometry, with wings that adjust their angle for optimal performance at varying speeds. This feature was particularly important in its role as a strike aircraft, offering flexibility during combat maneuvers. The Pegasus engine itself is a force to be reckoned with, producing around 22,000 pounds of thrust, giving the Harrier a remarkable level of agility and control.
Another crucial element of the Harrier's design is its "blown wing" system. During takeoff, engine exhaust is channeled over the wing surfaces, increasing lift and reducing the required runway length. This allowed the Harrier to operate from austere, makeshift airfields, which was incredibly valuable in a variety of operational scenarios.
The Harrier was specifically designed for operations in environments with limited infrastructure, requiring a robust undercarriage and landing gear capable of handling rough landings. The aircraft's capabilities proved invaluable during various operations, offering close air support to ground troops in a way conventional aircraft couldn't match.
Early in the Harrier's operational history, engineers encountered challenges related to engine stalls during hovering. Thankfully, this was overcome with design modifications that demonstrated the continuous nature of aircraft design and development. These issues and subsequent solutions serve as a good example of iterative engineering in the aviation world.
The Harrier played a key role in the Falklands War. Its unique capabilities in operating from minimal infrastructure gave British forces a critical advantage in the challenging environment of the South Atlantic. The Harrier's V/STOL capability provided unparalleled flexibility, allowing it to operate from dispersed airfields closer to the front lines.
One interesting aspect of the Harrier was its early adoption of fly-by-wire technology. This approach, where computer systems enhance stability and maneuverability, was groundbreaking at the time. While modern fighters almost exclusively rely on fly-by-wire today, the Harrier was a pioneer in the field.
The Harrier's distinct silhouette has become a lasting symbol of British aviation. It has frequently appeared in popular media and military displays, further cementing its place in the public's imagination. However, beyond the imagery, the Harrier's legacy is the groundbreaking technical solutions that pushed the boundaries of flight. It’s an icon, demonstrating the impact of technical innovation and engineering on future aircraft designs.
Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - de Havilland Mosquito in Air and Sea
The de Havilland Mosquito, often called the "Mossie," is a prime example of British ingenuity in aircraft design during the Second World War. This twin-engine plane, built primarily from wood (plywood and balsa), was a truly unique aircraft for its time, earning the nickname "Wooden Wonder." Designed as a fast bomber, the Mosquito was intended to outrun enemy fighters, negating the need for heavy defensive armament or fighter escorts. Its speed, altitude, and range were exceptional, making it suitable for a variety of tasks, from bombing and reconnaissance to ground attacks.
The Mosquito's pivotal role in operations like D-Day showcases its significance during the conflict. Its production continued into the early 1950s, with some variants even built under license in Canada and Australia. The Royal Air Force, initially hesitant about its wooden construction, quickly recognized its capabilities and effectiveness, especially in daylight precision bombing.
The aircraft's versatility is further emphasized by the development of the Sea Mosquito, a variant designed for naval operations. It highlights the flexibility of the basic design and how readily it could be adapted to various roles. The Sea Mosquito, along with its other variants, played a significant role in ensuring the Mosquito's legacy as one of the most effective aircraft of the Second World War. It's a reminder of a time when creativity and resourcefulness were vital in developing solutions to demanding wartime challenges, and remains a powerful symbol of aviation innovation.
Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - de Havilland Mosquito in Air and Sea
1. **A Multi-Role Workhorse**: The de Havilland Mosquito, affectionately nicknamed "Mossie," was a remarkably versatile aircraft. It operated as a bomber and fighter, often within the same mission, showcasing its inherent flexibility. Its construction, primarily from wood—plywood and balsa wood—made it lighter than many contemporaries built of metal. This lightweight construction, along with smart engineering, simplified its manufacturing process, enabling swift deployment during the war's critical phases.
2. **A Speed Demon**: The Mosquito was a speedster, reaching speeds in excess of 400 mph, a significant achievement for its time. This velocity played a key role in its low-level, high-precision bombing raids. By outpacing German fighters, it reduced the need for escorts and heavier defensive armament, making it a highly efficient bomber.
3. **A Wooden Wonder**: The Mosquito's use of wood, specifically plywood, was a bold choice for a military aircraft. Its construction method demonstrated the ingenuity of wartime engineering, maximizing available resources in a time of scarcity. It was also significantly lighter than comparable metal-bodied aircraft of the time.
4. **Simplicity of Operation**: The Mosquito's design called for a crew of just two, a pilot and a navigator/bombardier. This was significantly less than other bombers at the time which could require a full complement of five to eight crew members. The streamlined operation and maintenance aspects contributed to its efficiency in the field.
5. **A Nighttime Predator**: Armed with cutting-edge radar and armament, the Mosquito also excelled as a night fighter. It was particularly successful in intercepting and destroying enemy aircraft under the cloak of darkness. Its design offered a natural stealthy profile and combined with its incredible speed to give it a significant advantage in nocturnal combat.
6. **Notable Operations**: One particularly famous mission of the Mosquito was Operation Jericho, targeting a German prison with the goal of liberating Allied prisoners. The precision bombing capabilities of the Mosquito allowed for a successful attack with minimal collateral damage, a hallmark of its effectiveness as a weapon.
7. **Adaptability Beyond War**: Following the war, the Mosquito found itself in a variety of unexpected roles. The aircraft was adapted for use in civilian applications including carrying both passengers and cargo, demonstrating its inherent robust engineering and responsiveness to market demands. Some Mosquito variants even continued to fly in support of aviation activities years after the conclusion of World War II.
8. **Success in the European Theatre**: During the war, the Mosquito played a key role in disrupting enemy infrastructure across Europe. Its inherent lightness was a strategic asset, enabling a swift strike and retreat tactic, reducing exposure to enemy anti-aircraft fire and increasing operational efficiency.
9. **A Challenging Design**: Mosquito's designers faced considerable challenges, balancing the requirements for high speed, payload capacity, and structural integrity, all while relying on unconventional materials. The aircraft's development pushed the boundaries of design and innovation. Its engineering advances were later incorporated into future generations of aircraft.
10. **Skepticism and Validation**: Although lauded for its performance, the Mosquito also met with resistance from some quarters. Some critics questioned the reliability of a wooden aircraft in an era of ever more advanced metallic aircraft designs. But the Mossie's operational successes ultimately proved many doubters wrong, further solidifying its legendary status in the history of aviation.

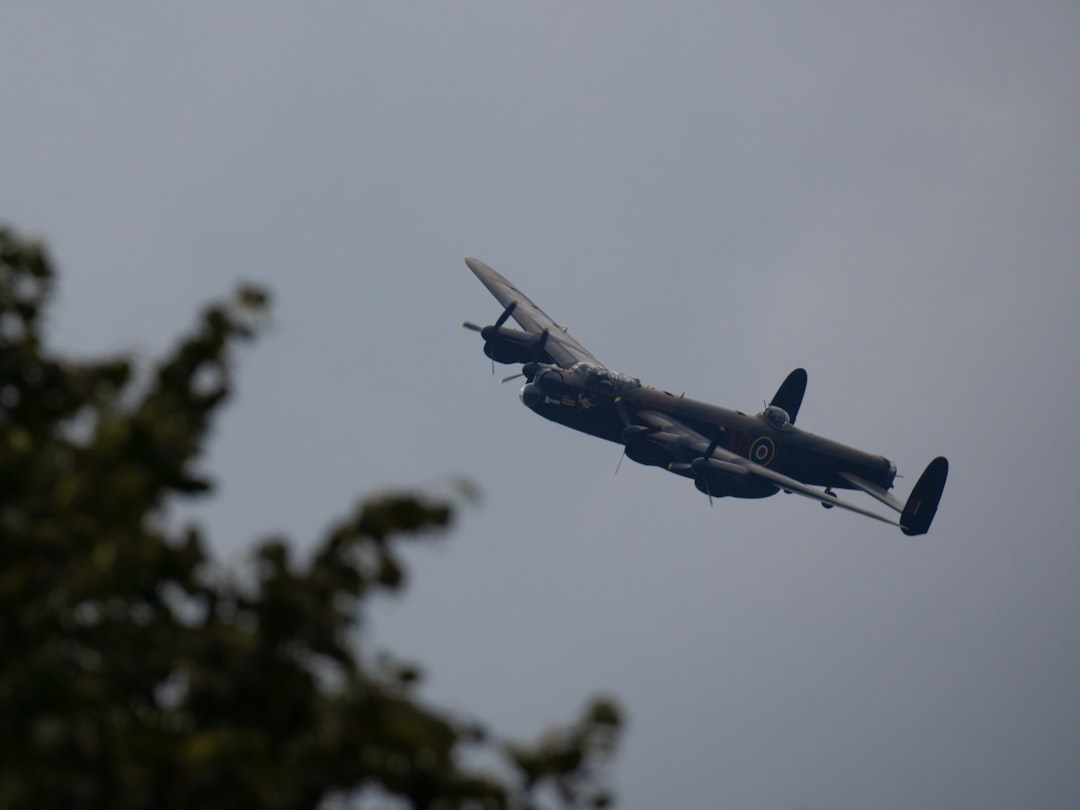

Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - Avro Lancaster in AirSpace
The Avro Lancaster, a British heavy bomber that entered service in 1942, stands as a testament to wartime engineering and aviation prowess. Its large size, with a 102-foot wingspan, and four powerful Rolls-Royce Merlin engines allowed it to carry heavy loads. This capability was central to its role in significant wartime events like the Dambusters Raid. The Lancaster's ability to carry massive payloads, including the colossal Grand Slam bomb, solidified its place in aviation history.
At IWM Duxford's AirSpace, you can experience the Lancaster's legacy firsthand. The museum offers the chance to explore the aircraft's interior, granting a glimpse into the world of its crew during the war. The Lancaster Experience, among other events, allows visitors to connect with this iconic aircraft and learn about its impact on the war. As the museum commemorates the 80th anniversary of the Lancaster's service, it provides a compelling reminder of Britain's contributions to aviation and offers a window into the past. Its design, construction, and operational history serve as a valuable link to a crucial period in British aviation history and underscore the enduring impact of wartime innovation on the aircraft of today.
### Surprising Facts About the Avro Lancaster in AirSpace
The Avro Lancaster, a British heavy bomber that entered service in 1942, remains a prominent symbol of World War II aviation. Its design, which prioritized structural strength without compromising speed, represents a turning point in British bomber engineering.
Initially envisioned as a replacement for the Halifax, the Lancaster showcased a remarkable ability to carry a significant payload. It could handle up to 22,000 pounds of bombs, facilitating missions involving massive ordnance, including the devastating "Grand Slam" bomb deployed against heavily fortified targets.
Its four Rolls-Royce Merlin engines allowed it to attain speeds exceeding 300 mph, making it a formidable force in the skies. The multi-engine layout offered the important advantage of redundancy in case of engine failure, while also providing a potent boost for long-range sorties.
The Lancaster was also ahead of its time in terms of navigation technology. It incorporated advanced systems like the H2S radar, enabling low-level bombing even under challenging visibility conditions. This helped significantly enhance mission effectiveness during key operations.
The Lancaster gained worldwide notoriety for its role in Operation Chastise, the Dambusters Raid. This operation saw the deployment of "bouncing bombs", a unique design that utilized physics to defeat heavily protected German dams by making them skip across the water before detonation.
Interestingly, the Lancaster's shape and design helped contribute to reduced radar visibility compared to some of its contemporaries. This was particularly beneficial during night-time missions, where it could reduce interception risk.
The Lancaster typically had a crew of seven, which included a pilot, navigator, bomb aimer, and wireless operator, offering a specialized crew for efficient operation. It speaks to the complexity of operations during those times.
After the war, the Lancaster's resilience made it ideal for civilian use. Many aircraft were re-purposed for cargo transport and even participated in airshows. The fact that it could easily transition to these new roles highlights the quality of its initial engineering.
During its service life, over 7,300 Lancasters were built, making it one of the most widely produced heavy bombers. This remarkable production scale signifies the huge demand and industrial might needed to produce the necessary quantity of aircraft to fight the war.
Decades after its final flight, the Avro Lancaster continues to appear at airshows and commemorations, highlighting its crucial wartime role and its enduring legacy as a technical feat. The Lancaster's influence on future aircraft design cannot be understated, making it a must-see at the IWM Duxford AirSpace hangar.
Exploring Britain's Aviation Heritage A Guide to IWM Duxford's Top 7 Must-See Exhibits - Messerschmitt Bf 109 in Air and Sea
The Messerschmitt Bf 109, a pivotal German fighter aircraft during World War II, is a compelling exhibit at IWM Duxford. It was heavily involved in various significant battles, including the Battle of Britain, showcasing its capabilities against Allied fighters like the Spitfire. The Bf 109, first used in 1937, was a product of innovative design, built with an advanced all-metal structure that made it very efficient in air combat. Its performance was impressive due to its powerful engine and aerodynamic design, which allowed it to engage effectively in many aerial skirmishes. However, as the war progressed, newer aircraft designs started to outpace the Bf 109. Despite this, it remained a cornerstone of the Luftwaffe's air force for many years. The specific Bf 109 at Duxford is linked to a crash-landing in 1940 after a confrontation with Spitfires. It reminds us that the development of aircraft technology was quite intense, with each side trying to improve its combat performance. Its presence at IWM Duxford today is a reminder of this period and the continuous evolution of air combat throughout history.
### Surprising Facts About the Messerschmitt Bf 109 in Air and Sea
1. **A Structural Pioneer**: The Messerschmitt Bf 109 was a pioneer in using an all-metal, monocoque (single-shell) structure in a mass-produced fighter. This innovative approach produced a stronger yet lighter airframe, significantly improving its performance.
2. **Adaptable to Many Roles**: While most people know the Bf 109 as a fighter, it actually performed many tasks. From ground-attack missions to reconnaissance, and even heavy-fighter roles, it showed just how versatile its basic design was, adapting to different configurations and weapon payloads.
3. **Aerodynamically Refined**: The Bf 109’s streamlined shape was exceptionally clean for its time, almost like a sports car of the sky. This contributed to its impressive speed and maneuverability. Interestingly, this design also impacted the shape of later generations of fighter aircraft, showing just how important a streamlined body could be.
4. **Engine Evolution**: While it started with the Junkers Jumo 210, the Bf 109 eventually switched to the more powerful Daimler-Benz DB 601 engine. This upgrade significantly improved its performance, particularly climb rate and top speed, which contributed to a higher horsepower output around 1,100.
5. **A Fighter's Legacy**: The Bf 109 played a decisive role in some of World War II's major air battles, including the Battle of Britain and Operation Barbarossa. Its high-altitude capability and speed made it a formidable opponent in air combat, showcasing its strengths in a variety of aerial battles.
6. **Pilot's Perspective**: The Bf 109 placed great emphasis on the pilot's experience. Wide canopies and thoughtfully designed cockpits provided excellent visibility and control. The placement of vital flight instruments was also well-thought-out, ensuring the pilot could easily access critical data, giving them a slight advantage during challenging situations and aerial maneuvers.
7. **High-Volume Production**: The sheer number of Bf 109s produced, over 33,000 across various versions, underscores Germany's manufacturing might during the war. It’s a testament to their ability to produce a large number of complex machines during a high-demand scenario.
8. **Weapon Options**: The Bf 109’s armament continually evolved during the war. Initially designed with machine guns, it saw the addition of cannons, which helped expand its range of capabilities. This flexibility allowed the pilots to adapt their setups to target different types of foes.
9. **Tricksy Landing Gear**: The Bf 109's landing gear had a narrow track, which made landings a bit tricky for pilots. It required a lot of skill to control it well on takeoffs and landings to avoid problems, reminding us of the inherent engineering difficulties when attempting to reduce drag while still keeping the aircraft stable.
10. **Enduring Influence**: The Bf 109's innovative design techniques, particularly in areas like lightweight metal construction and aerodynamic refinement, had a profound influence on the designs of aircraft that came after it. Its principles are still evident in many modern military planes.
